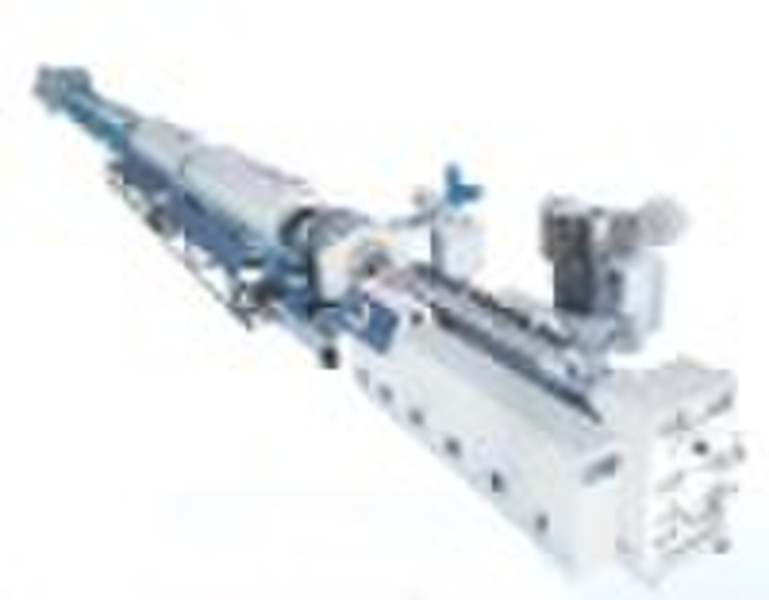

PE pipe production line

PE pipe production linePE pipe extrusion line PE pipe linePE pipe making linePE pipe making machinePE pipe machinePE pipe extruder PE pipe extruding production lineFeatures and application: PE pipe extrusion line is applicable for high speed extrusion of PE and PB, PERT, ABS etc. The whole line adopts PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder sued for extruding the mark line. 1) The screw of the extruder equipped with barrier unit and mixing structure, and the barrier owns new style grooves. 2) Special design of basket die head of HDPE (PP,ABS) large diameter pipe with thick wall offer lower melting temperature, good mixing, lower pressure of cavity, and stable production. 3) Special design for sizing and cooling system by using film and water-ring to cool HDPE (PP,ABS) material, which can fit for the requirement of HDPE (PP,ABS). 4) Special design vacuum sizing tank can ensure the stability of size and roundness. Main Technical Parameter: Model Pipe range (mm) Capacity (kg/h) Hauling speed (max. a/min) Total power (KW) Line length (m) PE53B 6-32 40-100 29 35 20 PE63B 16-63 100-150 10 35 35 PE125B 40-125 200-250 6 145 38 PE250B 90-250 300-350 3.5 195 42 PE315B 110-315 300-350 3 220 44 PE450B 100-450 400-500 1.2 300 56 PE500B 200-500 400-500 1.1 330 56 PE630B 250-630 700-800 0.9 440 64
